The Dust Cover   Dimensions     embedded metal clip strengthens and secures dustcover to the HitchSafe fitting into corresponding grooves. Cavity built into cover allows... ... future integration with bolting on personalized logo plates (room in cover for nuts).

	Combinated Drawer Inner Dimensions of drawer Width-  32mm (1-1/4") Length-  90mm (3-9/16") Height-   45mm" (1-3/4") Fits 2 cards diagonally (credit card or license).

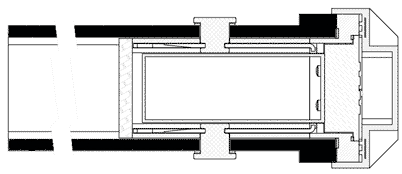

Top View Cutaway of HitchSafe installed in Hitch Receiver.

	HitchSafe Body Fits standard 2" Hitch Receiver. Adjustable for pin hole variances Maximum hole reach from front of receiver to middle of pin hole is 2-9/16". Maximum  body depth into receiver is 4-3/8"

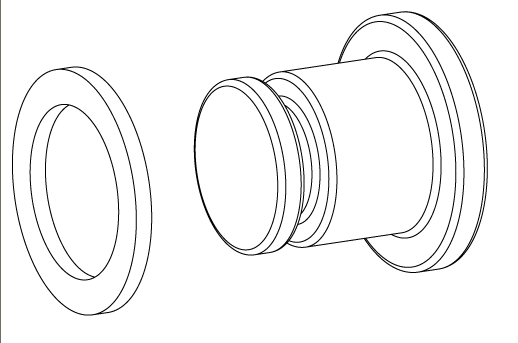

	2 Hitch Pins & 2 EVA Washers Chrome plated hardened steel. Pins have the external appearance of a normal hitch pin. Flanged Pin Head independent of each other prevent inward force on pins. Internal metal sliding bar captures pin groove securing the HitchSafe inside of the receiver. EVA foam washers seal Hitch Pin Holes.

3D Model
Click on the graphics below to install a plug-in for Internet Explorer that opens up a 3D CAD view of the HitchSafe that you can rotate, zoom, move, etc.
The program is quite small, but the data for the HitchSafe View is about 4 MB

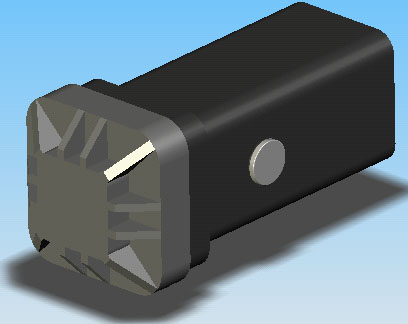

Installed in Receiver

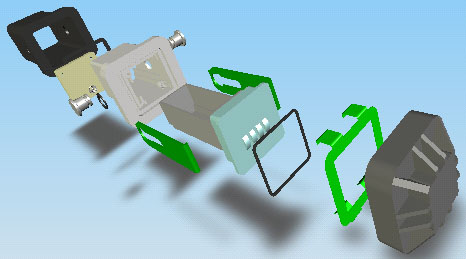

Unassembled
