SPECIFICATIONS

     The HitchSafe fits inside standard 2" receivers & concealed to appear as a normal hitch cover.

Hitch Cover

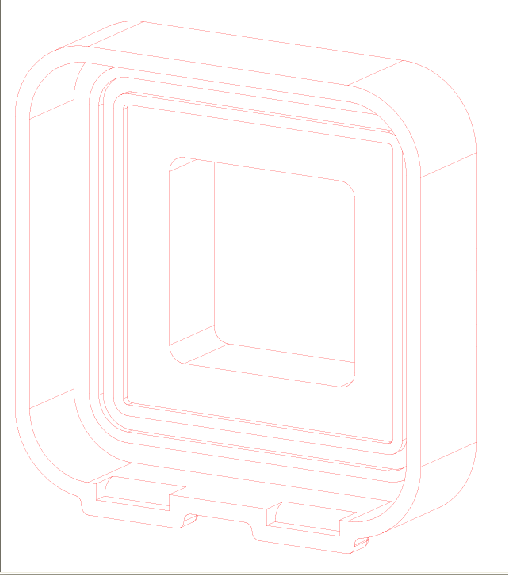

 The Dust Cover

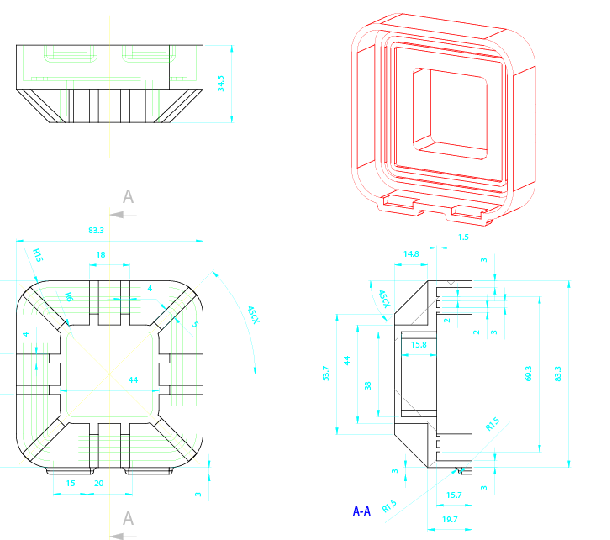

  Dimensions

hitch cover 		Cavity built into cover allows...

hitch covers

  embedded metal clip strengthens and secures dustcover to the HitchSafe fitting into corresponding grooves.

hitch cover

 		 ... future integration with bolting on personalized logo plates (room in cover for nuts).

Hitch Plug

  WARNING- California Residents- (Proposition 65)
    Combinated Drawer

Inner Dimensions of drawer

Width- 32mm (1-1/4")
Length- 90mm (3-9/16")
Height- 45mm" (1-3/4")
Fits 2 cards diagonally (credit card or license).
 		 trailer hitch cover

    HitchSafe Body

Fits standard 2" Hitch Receiver.
Adjustable for pin hole variances
Maximum hole reach from front of receiver to middle of pin hole is 2-9/16".
Maximum body depth into receiver is 4-3/8"		 custom hitch cover

    2 Hitch Pins & 2 EVA Washers

Chrome plated hardened steel.
Pins have the external appearance of a normal hitch pin.

Flanged Pin Head independent of each other prevent inward force on pins.

Internal metal sliding bar captures pin groove securing the HitchSafe inside of the receiver.
EVA foam washers seal Hitch Pin Holes.



 hitch receiver cover

    3D Model

  Click on the graphics below to install a plug-in for Internet Explorer that opens up a 3D CAD view of the HitchSafe that you can rotate, zoom, move, etc.

The program is quite small, but the data for the HitchSafe View is about 4 MB

  Installed in Receiver

tow hitch cover 		Unassembled

truck hitch cover

    HitchSafe installed in Hitch Receiver.

  Top View Cutaway of HitchSafe installed in Hitch Receiver.

hitch cover plug 		Side view transparent of HitchSafe installed in Hitch Receiver

truck hitch covers

Trifold Brochure Outside
Trifold Brochure Inside
